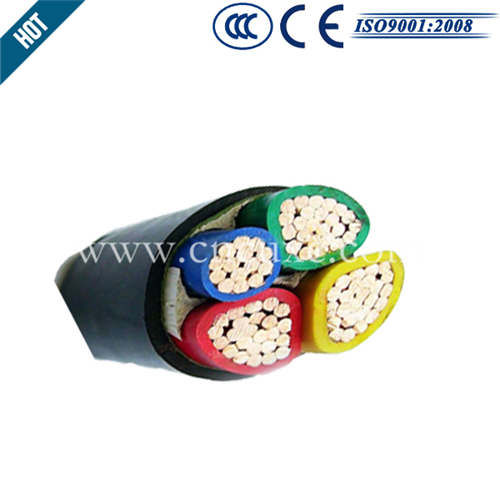

0.6-1kV PVC INSULATED UNARMORED POWER CABLE

Our company specialized in Cable/Electrical Wire/ Conductor product

0.6-1kV PVC INSULATED UNARMORED POWER CABLE

type:0.6/1kV CU or AL/PVC/PVC (NYY)

standard:IEC 60502-1

construction:0.6/1kV CU or AL/PVC/PVC

rating voltage:0.6/1kV

conductor material:CU or AL

insulation material:PVC

sheath material:PVC

specification or package can be produced as your request.

INQUIRY

Application:
Application
Power cable suitable for construction of underground supply and distribution
grids and installations of industrial and public projects, for street
lighting, for transmission and distribution of electric power at nominal
voltage U0/U 0,6/1 kV.
The concentric conductor is used as a screen and could be used as
neutral (N), earthing (PE), and both as neutral and earthing (PEN) conductor,
but not as an external conductor.

Construction
• Solid or stranded Cu or AL wires cl. 1 or cl. 2
• Description of the wire’s shape
re - round solid
rm - round multi-core
sm - sector multi-core
• Insulation: PVC compound
• Wrapping: polymer tape
• Outer sheath: PVC compound
• Outer sheath colour: black

600 / 1000 V – SINGLE CORE COPPER CONDUCTOR PVC INSULATED PVC SHEATHED CABLES (CU / PVC / PVC)

Nominal Area of Conductor Maximum Conductor ResistanceResistance at 20°C Thickness of Insulation Thickness of Outer Sheath Approx. Overall Diameter Approx.Cable Weight Standard Packing Length Drum Size /Coil Approx. Gross Weight
Sqmm Ohm/Km mm mm mm Kg/Km Yard/Metre±10% KG
1.5* 12.1 0.8 1.4 6.4 58 100Y COIL 5.3
1.5 12.1 0.8 1.4 6.6 62 100Y COIL 5.7
2.5* 7.41 0.8 1.4 6.8 71 100Y COIL 6.5
2.5 7.41 0.8 1.4 7 75 100Y COIL 6.9
4 4.61 1 1.4 7.9 100 100Y COIL 9.1
6 3.08 1 1.4 8.5 125 100Y COIL 11.4
10 1.83 1 1.4 9.2 170 100Y COIL 15.5
16 1.15 1 1.4 10.3 235 100Y COIL 21
25 0.727 1.2 1.4 12 345 1000M D-10 405
35 0.524 1.2 1.4 13.1 445 1000M D-10 505
50 0.387 1.4 1.4 14.6 585 500M D-8 340
70 0.268 1.4 1.4 16.2 795 500M D-9 460
95 0.193 1.6 1.5 18.7 1090 500M D-10 610
120 0.153 1.6 1.5 20.2 1330 500M D-10 730
150 0.124 1.8 1.6 22.2 1650 500M D-11 930
185 0.0991 2 1.7 24.4 2020 500M D-12 1120
240 0.0754 2.2 1.8 27.5 2600 500M D-12 1410
300 0.0601 2.4 1.9 30.1 3230 500M D-14 1770
400 0.047 2.6 2 33.6 4140 500M D-16 2280
500 0.0366 2.8 2.1 37.4 5200 500M D-18 1790
630 0.0283 2.8 2.2 43.2 6660 250M D-14 1820
800 0.0221 2.8 2.3 47.4 8340 250M D-16 2340
1000 0.0176 3 2.5 53.6 10600 250M D-18 2890

*Circular solid conductors(class 1)
All conductors circular or circular stranded compacted(class 2).
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound OR PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
All other cables conform generally to BS 6346.
*Cables with sector shaped conductors, having lesser overall dimensions , weight and cost are available on request.

600 / 1000 V – TWO CORE COPPER CONDUCTOR PVC INSULATED PVC SHEATHED CABLES

Nominal Area of Conductor Maximum Conductor ResistanceResistance at 20°C Thickness of Insulation Thickness of Outer Sheath Approx. Overall Diameter Approx.Cable Weight Standard Packing Length Drum Size /Coil Approx. Gross Weight
Sqmm Ohm/Km mm mm mm Kg/Km Yard/Metre±10% KG
1.5* 12.1 0.7 1.8 10.6 150 1000 D-8 200
1.5 12.1 0.7 1.8 11 160 1000 D-8 210
2.5* 7.41 0.8 1.8 11.8 190 1000 D-8 240
2.5 7.41 0.8 1.8 12.2 200 1000 D-9 260
4 4.61 1 1.8 13.2 255 1000 D-10 315
6 3.08 1 1.8 14.4 320 1000 D-10 380
10 1.83 1 1.8 16.6 460 1000 D-11 560
16 1.15 1 1.8 18.8 620 1000 D-12 730
25** 0.727 1.2 1.8 22.2 910 500 D-11 555
35** 0.524 1.2 1.8 24.4 1160 500 D-12 690
50** 0.387 1.4 1.8 27.9 1340 500 D-12 780
70** 0.268 1.4 1.9 31.3 1810 500 D-14 1060
95** 0.193 1.6 2 36.1 2450 500 D-18 1470
120** 0.153 1.6 2.1 39.3 2990 500 D-18 1740
150** 0.124 1.8 2.2 43.1 3680 500 D-18 2080
185** 0.0991 2 2.4 47.5 4500 500 D-19 2570
240** 0.0754 2.2 2.5 53.5 5770 500 D-18 1650
300** 0.0601 2.4 2.7 58.7 7150 500 D-18 2030
400** 0.047 2.6 2.9 65.7 9140 500 D-18 2530

*Circular solid conductors(class 1)
All conductors circular or circular stranded compacted(class 2).
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound OR PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
All other cables conform generally to BS 6346.
*Cables with sector shaped conductors, having lesser overall dimensions , weight and cost are available on request.

600 /1000 V – THREE CORE COPPER CONDUCTOR PVC INSULATED PVC SHIEATHED CABLES (CU/ PVC /PVC)

Nominal Area of Conductor Maximum Conductor ResistanceResistance at 20°C Thickness of Insulation Thickness of Outer Sheath Approx. Overall Diameter Approx.Cable Weight Standard Packing Length Drum Size /Coil Approx. Gross Weight
Sqmm Ohm/Km mm mm mm Kg/Km Yard/Metre±10% KG
1.5* 12.1 0.8 1.8 11.5 180 1000 D-9 240
1.5 12.1 0.8 1.8 11.9 190 1000 D-9 250
2.5* 7.41 0.8 1.8 12.4 225 1000 D-9 285
2.5 7.41 0.8 1.8 12.8 235 1000 D-9 295
4 4.61 1 1.8 14.8 330 1000 D-10 390
6 3.08 1 1.8 16 410 1000 D-11 510
10 1.83 1 1.8 18.2 560 1000 D-12 670
16 1.15 1 1.8 20.4 775 1000 D-12 885
25 0.727 1.2 1.8 21.2 1050 500 D-10 585
35 0.524 1.2 1.8 23.5 1360 500 D-11 780
50 0.387 1.4 1.8 27.1 1760 500 D-12 990
70 0.268 1.4 2 29.7 2390 500 D-12 1310
95 0.193 1.6 2.1 34.5 3240 500 D-16 1830
120 0.153 1.6 2.2 37.7 3990 500 D-18 2240
150 0.124 1.8 2.3 40.4 4900 500 D-18 2690
185 0.0991 2 2.5 45.1 6040 250 D-18 1720
240 0.0754 2.2 2.7 51.6 7820 250 D-18 2195
300 0.0601 2.4 2.9 56.3 9700 250 D-18 2665
400 0.047 2.6 3.1 63.7 12410 250 D-18 3340
500 0.0366 2.8 3.4 69.1 15480 250 D-18 4110

*Circular solid conductors (Class 1).
Conductors including 16sqmm circular stranded (Class 2).
25sqmm and above shaped stranded conductors(Class 2)
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound OR PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
Cable conforms to IEC 60502-1.

600 / 1000 V – FOUR CORE WITH REDUCED NEUTRAL COPPER CONDUCTOR PVC INSULATED PVC SHEATHED CABLES(CU/PVC/PVC)

Nominal Area of Conductor Maximum Conductor Resistance at 20°C Thickness of Insulation Thickness of Outer Sheath Approx.Overall Diameter Approx.Cable Weight Standard Packing Length Drum Size Approx.Gross Weight
Phase Neutral Phase Neutral Phase Neutral
Sqmm Ohm/Km        mm     mm mm Kg/Km Metre±10% KG
10* 6 1.83 3.08 1 1 1.8 18.2 540 1000 D-12 650
16* 10 1.15 1.83 1 1 1.8 20.7 760 500 D-10 440
25 16 0.727 1.15 1.2 1 1.8 23.3 1140 500 D-11 670
35 16 0.524 1.15 1.2 1 1.8 26.7 1450 500 D-12 835
50 25 0.387 0.727 1.4 1.2 1.9 30.3 1970 500 D-12 1100
70 35 0.268 0.524 1.4 1.2 2 33.4 2690 500 D-16 1560
95 50 0.193 0.387 1.6 1.4 2.1 38.6 3650 500 D-18 2070
120 70 0.153 0.268 1.6 1.4 2.2 41.5 4570 500 D-18 2530
150 70 0.124 0.268 1.8 1.4 2.4 46.6 5560 500 D-19 3100
185 95 0.0991 0.193 2 1.6 2.5 51.3 6900 250 D-18 1970
240 120 0.0754 0.153 2.2 1.6 2.7 56.9 8820 250 D-18 2450
300 150 0.0601 0.124 2.4 1.8 2.9 63.1 11050 250 D-18 3000
300 185 0.0601 0.0991 2.4 2 3 63.3 11370 250 D-18 3080
400 185 0.047 0.0991 2.6 2 3.2 70.5 14110 200 D-19 3140

*Phase conductors upto 16sqmm circular stranded(Class 2).
Phase conductors 25sqmm and above shaped stranded (Class 2).
All neutral conductors circular stranded (class 2).
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound OR PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
*Cables conform to IEC 60502-1
All other cables conform generally to BS 6346 and to IEC 60502-1.

600 /1000 V – FOUR CORE COPPER CONDUCTOR PVC INSULATED PVC SHIEATHED CABLES(CU/PVC/PVC)

1.5* 12.1 0.8 1.8 12.3 210 1000 D-9 270
1.5 12.1 0.8 1.8 12.8 225 1000 D-9 285
2.5* 7.41 0.8 1.8 13.3 265 1000 D-10 325
2.5 7.41 0.8 1.8 13.8 280 1000 D-10 340
4 4.61 1 1.8 16 390 1000 D-11 490
6 3.08 1 1.8 17.4 495 1000 D-12 605
10 1.83 1 1.8 19.8 705 1000 D-12 815
16 1.15 1 1.8 22.3 980 500 D-10 555
25 0.727 1.2 1.8 23.3 1290 500 D-11 745
35 0.524 1.2 1.8 26.7 1700 500 D-12 960
50 0.387 1.4 1.9 30.3 2310 500 D-14 1310
70 0.268 1.4 2.1 33.6 3150 500 D-16 1790
95 0.193 1.6 2.2 38.8 4260 500 D-18 2370
120 0.153 1.6 2.4 41.9 5270 500 D-18 2870
150 0.124 1.8 2.5 46.3 6490 500 D-19 3570
185 0.0991 2 2.7 51.2 8000 250 D-18 2240
240 0.0754 2.2 2.9 56.8 10250 250 D-18 2800
300 0.0601 2.4 3.1 62.6 12810 250 D-18 3440
400 0.047 2.6 3.4 70 16420 200 D-19 3610
500 0.0366 2.8 3.6 78.9 20500 200 D-19 4420

*Circular solid conductors (Class 1).
Conductors including 16sqmm circular stranded (Class 2).
25sqmm and above shaped stranded conductors(Class 2)
All the cables are insulated with either PVC Type 5 Heat Resisting 85℃ compound and sheathed with PVC
Type 9/ST2 compound OR PVC Type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
Cable conforms to IEC 60502-1.

600 /1000 V – FIVE CORE COPPER CONDUCTOR PVC INSULATED PVC SHIEATHED CABLES(CU/PVC/PVC)

Nominal Area of Conductor Maximum Conductor ResistanceResistance at 20°C Thickness of Insulation Thickness of Outer Sheath Approx. Overall Diameter Approx.Cable Weight Standard Packing Length Drum Size /Coil Approx. Gross Weight
Sqmm Ohm/Km mm mm mm Kg/Km Yard/Metre±10% KG
5×1.5* 12.1 0.7 1.8 12.7 230 1000 D-9 290
5×1.5 12.1 0.7 1.8 13.2 240 1000 D-9 300
5×2.5* 7.41 0.8 1.8 13.8 290 1000 D-10 350
5×2.5 7.41 0.8 1.8 14.9 325 1000 D-10 385
5×4 4.61 0.8 1.8 16.2 420 1000 D-11 520
5×6 3.08 0.8 1.8 17.8 545 1000 D-12 655
5×10 1.83 1 1.8 20.8 835 500 D-10 480
5×16 1.15 1 1.8 23.8 1170 500 D-11 685
5×25 0.727 1.2 1.9 26.2 1630 500 D-12 925
5×35 0.524 1.2 2 31.5 2310 500 D-14 1310

*Circular solid conductors (Class 1).
All other Conductors Circular stranded (Class 2).
All the cables are insulated with either PVC Type 5 Heat Resisting 85°C compound and sheathed with PVC
Type 9/ ST2 compound OR PVC Type N/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
Cables conform generally to IEC 60502 -1.

Installation:
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
Packing:
The required marking shall be printed with a weather-proof material on the outsides of drum according to customer’s requirement.
